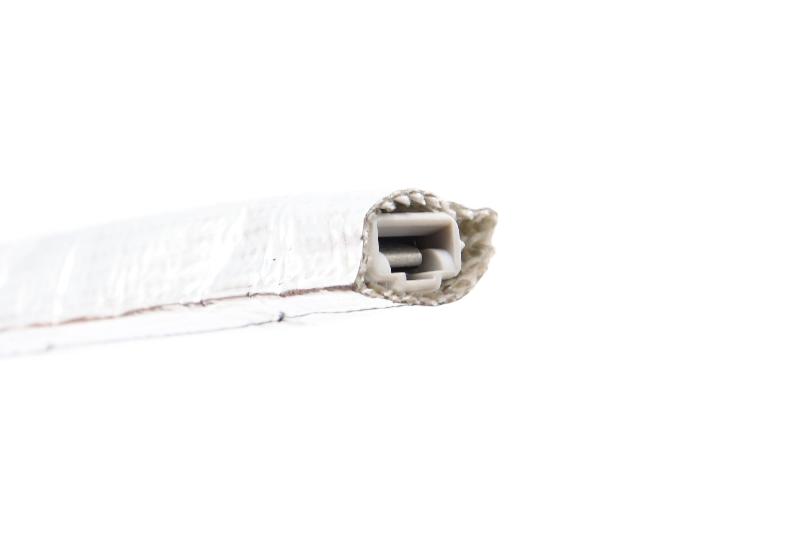

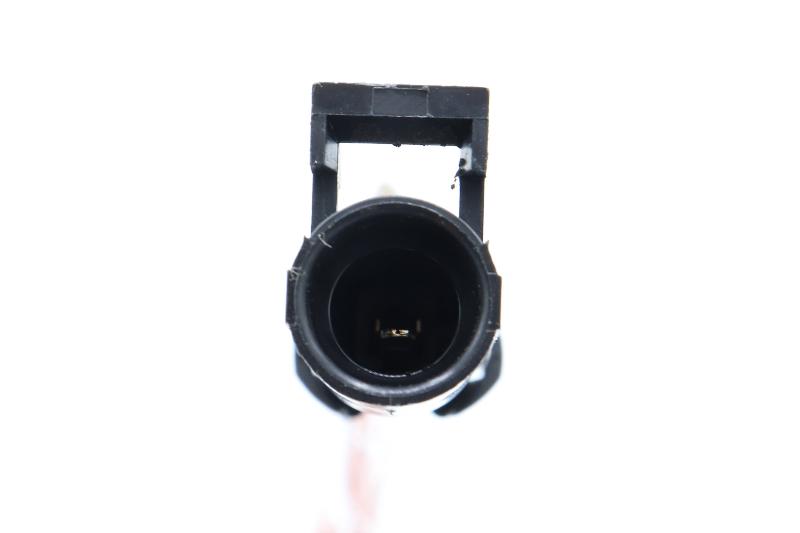

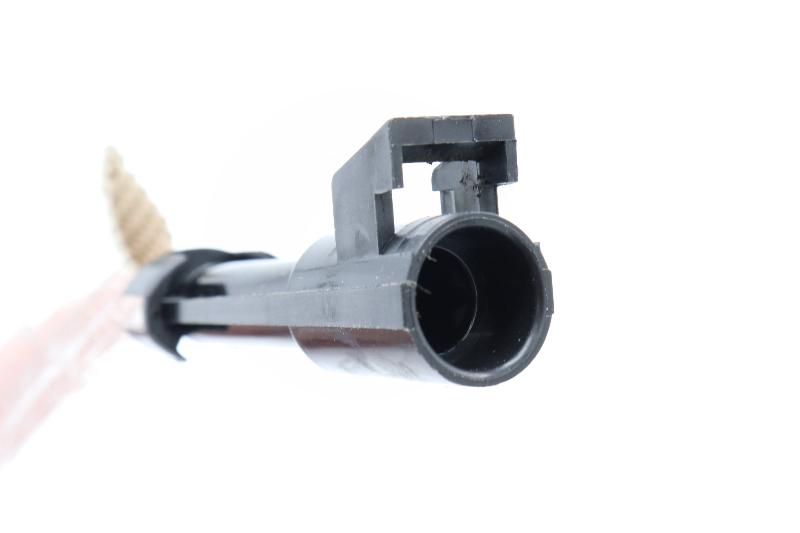

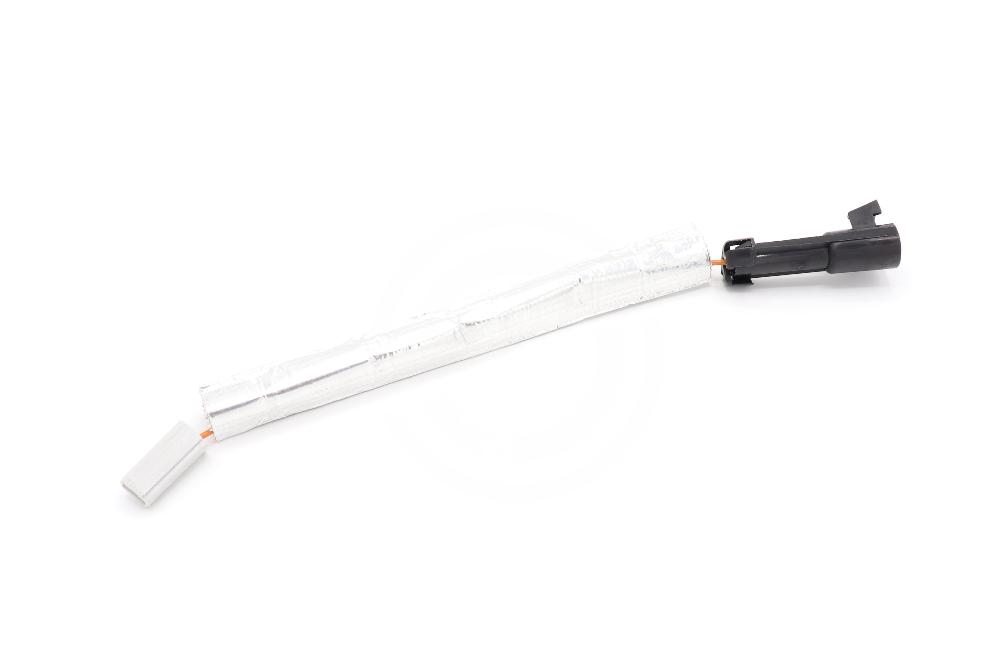

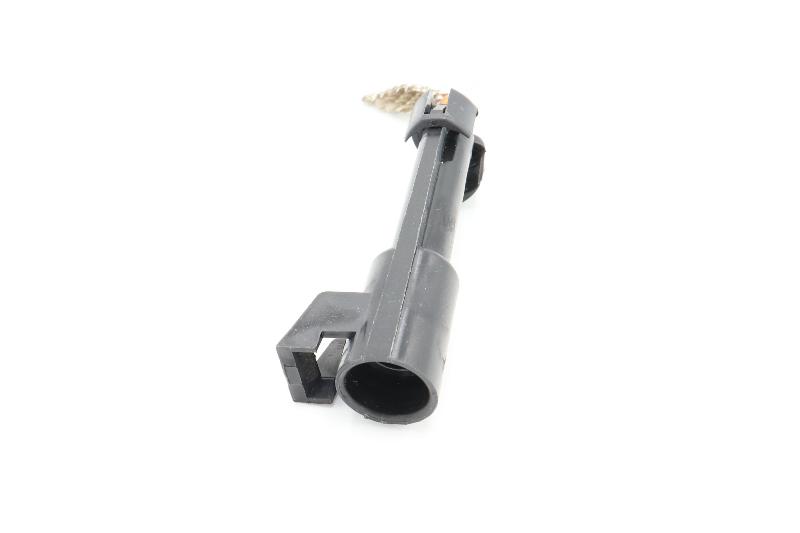

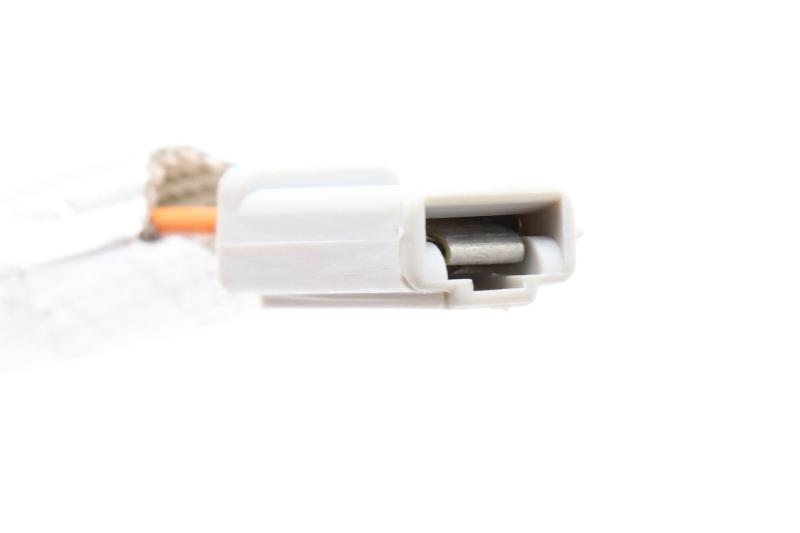

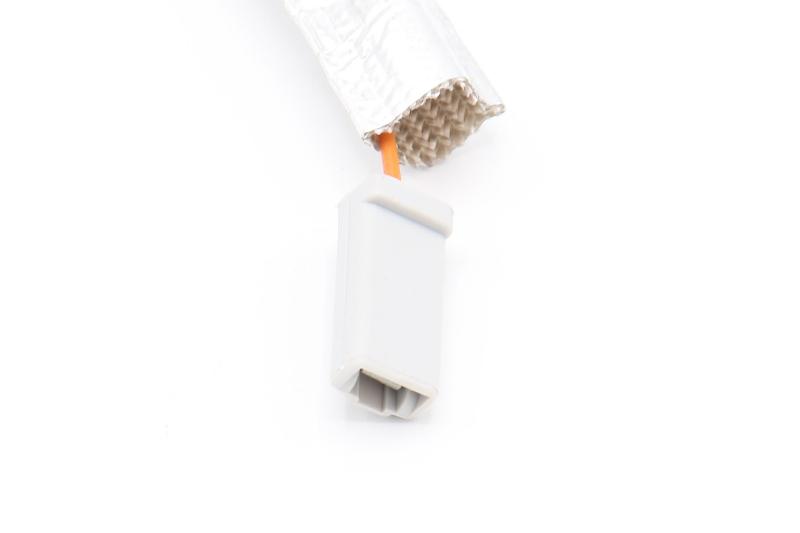

6.5L GM Diesel Glow Plug Harness Extension

Glow Plug Extension Harness Connector for 1992 - 2002 6.5L GM Turbodiesel

Most GMC/Chevrolet vehicles equipped with the 6.5L GM turbodiesel feature two of these glow plug harness extensions on the passenger side beneath the turbocharger. They are incorporated into the glow plug harness to increase the serviceability of the cylinder 4 and 6 glow plugs because there are heat shields attached to the exhaust manifold at these cylinders. This part of the glow plug harness is typically replaced with the glow plugs since the connectors tend to deteriorate. Please note that this item is sold individually and (2) are required per vehicle.

Need the harness side of this connector? Mates with RT-250801, fusible link glow plug harness connector

FEATURES

• Made in the USA with primarily domestic materials
• No cutting, no splicing; direct replacement part
• OEM quality guaranteed - produced from OEM connectors and Military spec, aircraft grade wire
• High temperature wire sleeve

• Replaces GM 15320904, Dorman 645519, and Alliant Power AP0067

COMPATIBILITY

1992 - 2000 Chevrolet/GMC C2500, C3500 - 6.5 liter V8, diesel
1992 - 2000 Chevrolet/GMC K2500, K3500 - 6.5 liter V8, diesel
1994 - 1998 Chevrolet/GMC C1500 - 6.5 liter V8, diesel
1994 - 1999 Chevrolet/GMC K1500 - 6.5 liter V8, diesel
1992 - 2000 Chevrolet Suburban C2500 - 6.5 liter V8, diesel
1994 - 1999 Chevrolet Suburban K1500, K2500 - 6.5 liter V8, diesel
1994 - 1999 Chevrolet Suburban C1500 - 6.5 liter V8, diesel
1992 - 2002 Chevrolet/GMC C3500HD chassis cab - 6.5 liter V8, diesel
1995 - 1999 Chevrolet Tahoe - 6.5 liter V8, diesel
1994 - 1999 GMC Yukon - 6.5 liter V8, diesel
1994 - 1997 Chevrolet G20/G30 vans - 6.5 liter V8, diesel
1992 - 1995 GMC G2500/G3500 vans - 6.5 liter V8, diesel

For standard replacement glow plug connectors, see: 6.5L diesel fusible link glow plug connector pigtails
