6.6L Duramax Glow Plug Connector Pigtail

6.6L Duramax Glow Plug Connector Pigtail

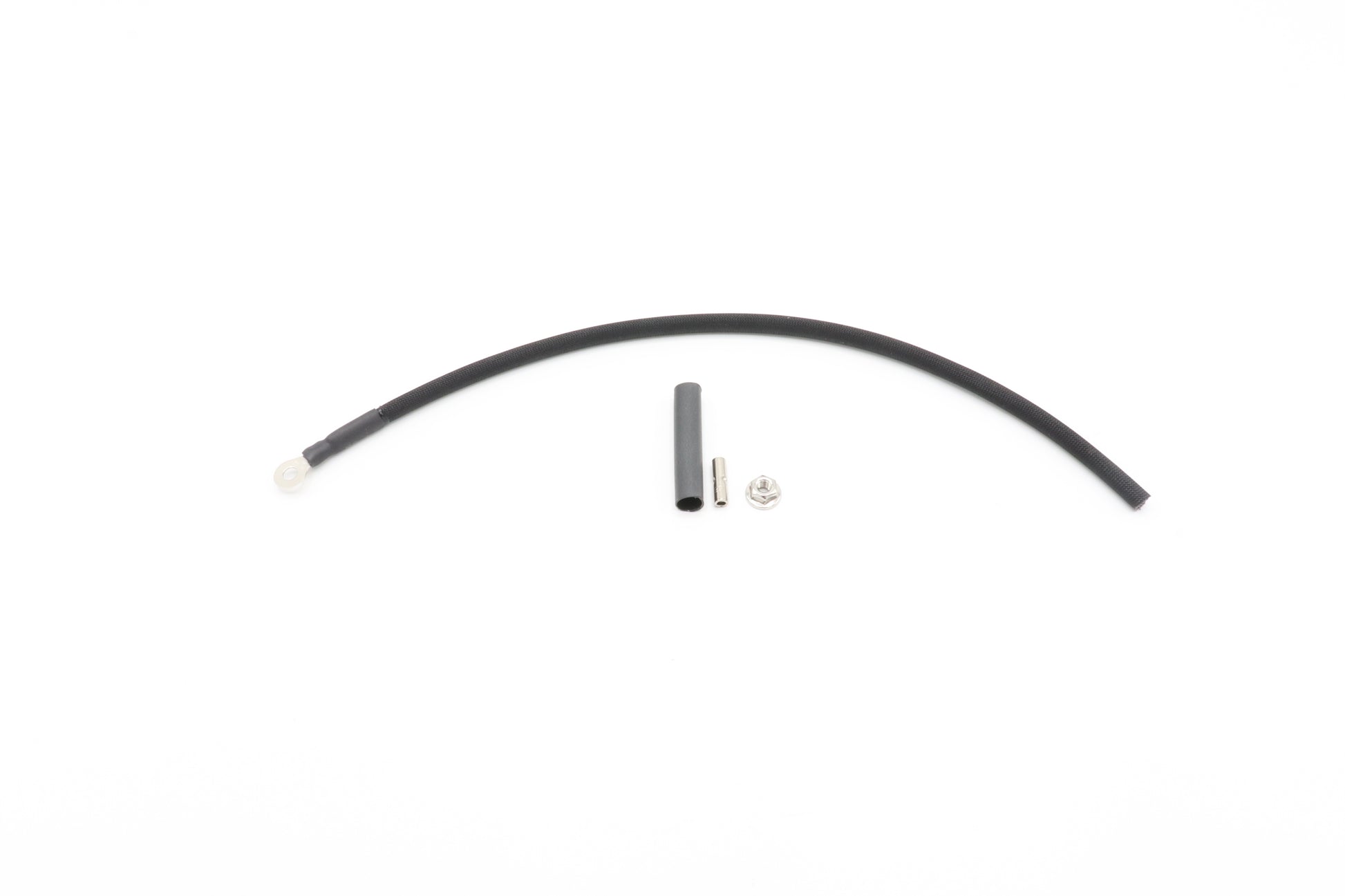

Replacement glow plug connector pigtail for 2001 to 2016 6.6L Duramax diesels (excluding 2001 to 2004 model years without CA emissions package, see applications list below). Utilizes high temperature ring terminal and wire sleeve, exceeding OEM requirements. Simple cut and splice replacement. Sold individually, includes butt splice, heat shrink tubing, and new glow plug flange nut.

FEATURES

• 10 inch lead

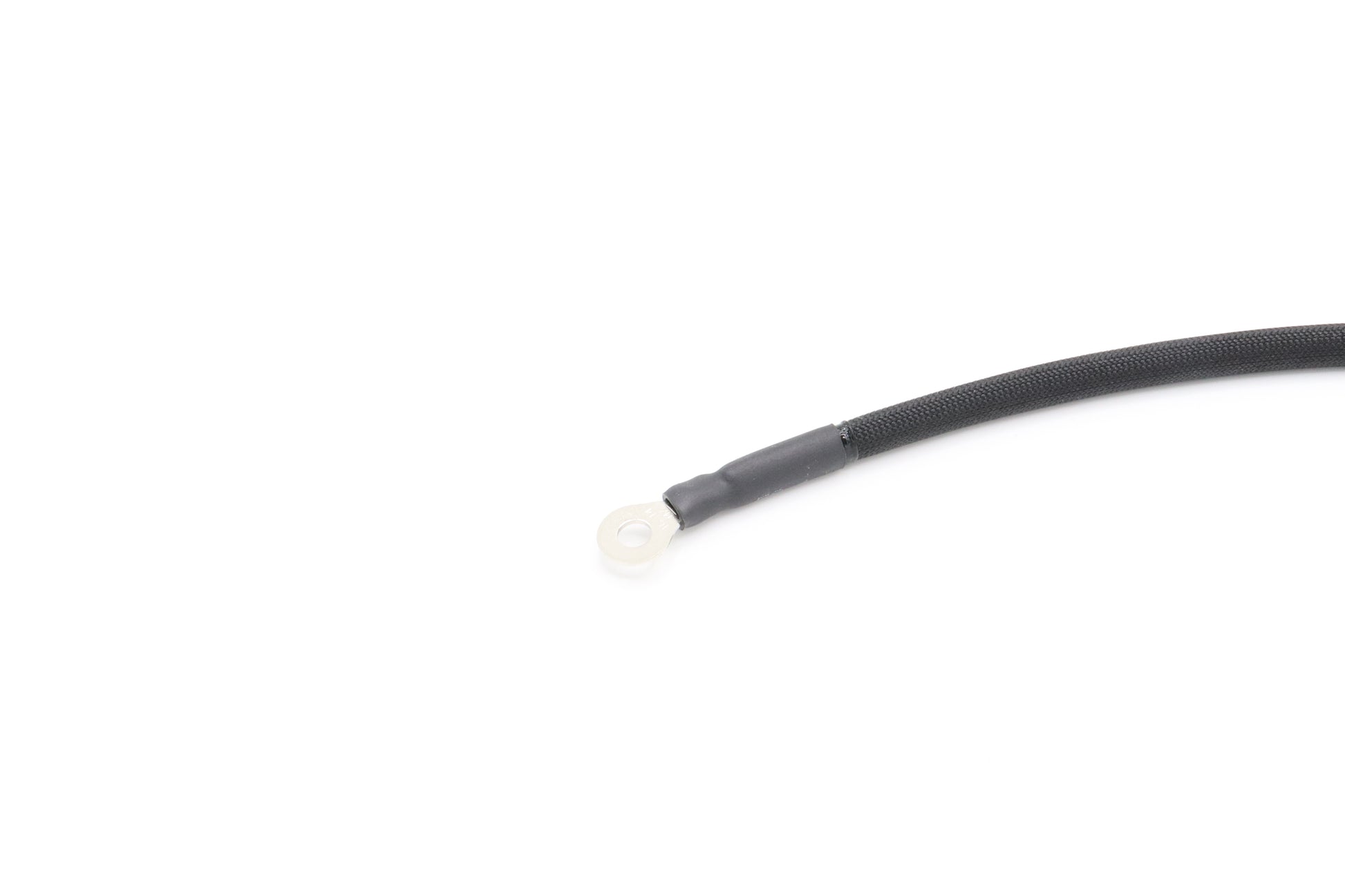

• High temperature ring terminal resists temperatures up to 900° F
• High temperature wire sleeve resists temperatures up to 1,200° F

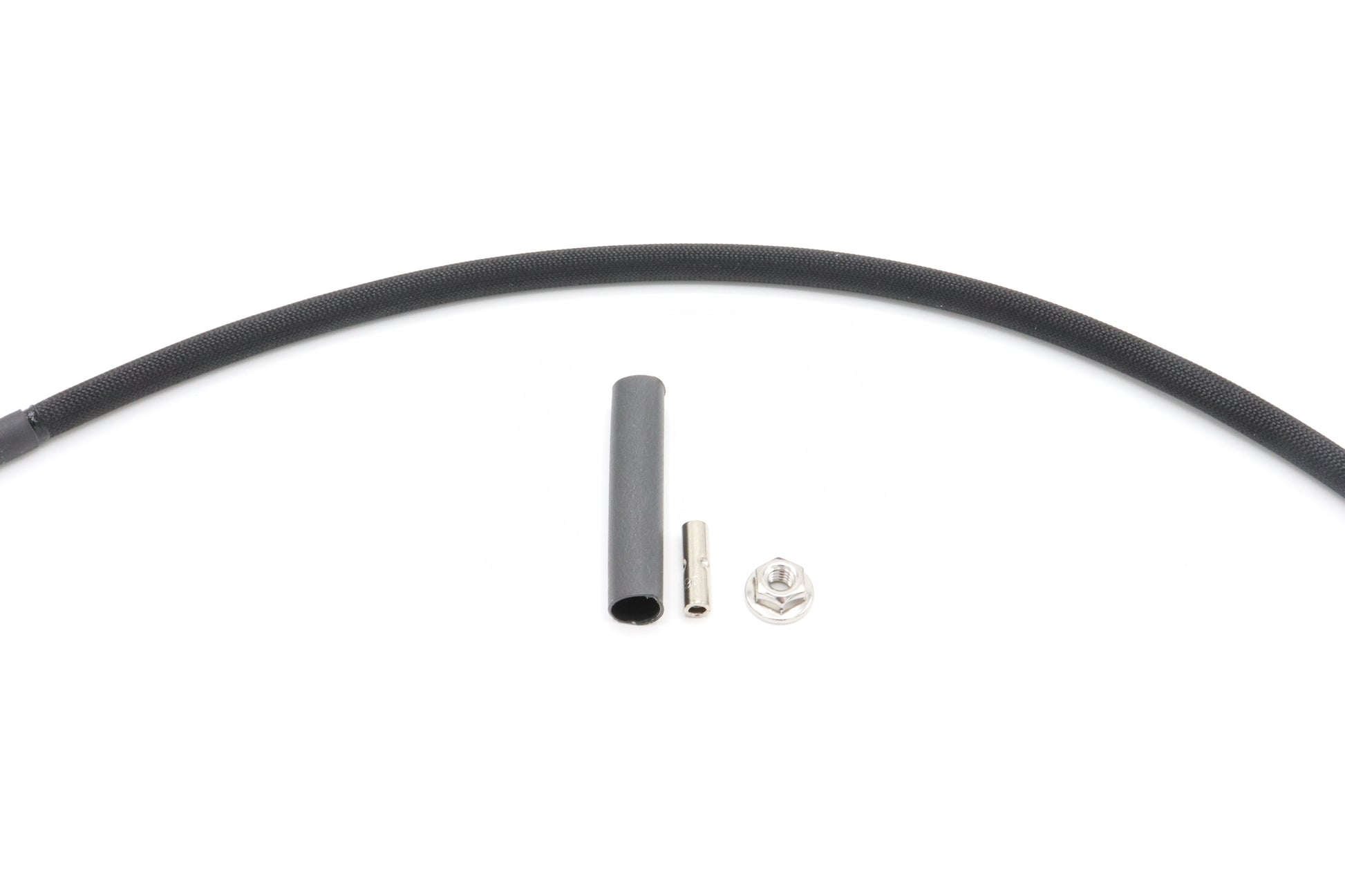

• Includes butt splice, heat shrink tubing, and glow plug flange nut
• Sold individually
• Made with pride in the USA

COMPATIBILITY

2001 - 2004 Chevrolet Silverado 2500, 3500 - 6.6 liter LB7 Duramax V8 with CA emissions package
2001 - 2004 GMC Sierra 2500, 3500 - 6.6 liter LB7 Duramax V8 with CA emissions package
2004 - 2005 Chevrolet Silverado 2500, 3500 - 6.6 liter LLY Duramax V8
2004 - 2005 GMC Sierra 2500, 3500 - 6.6 liter LLY Duramax V8
2006 - 2016 Chevrolet Silverado 2500, 3500 - 6.6 liter Duramax V8
2006 - 2016 GMC Sierra 2500, 3500 - 6.6 liter Duramax V8

Fits ACDelco 62G, 63G, 9G glow plugs. Does not fit 2001 - 2004 model year engines with Federal emissions package and busbar-type glow plug connectors.

INSTALLATION NOTES

Cut wire and sleeve to required length. Peel back wire sleeve and attach butt splice. Install heat shrink, then complete splice to wiring harness. Apply heat to heat shrink tubing to secure joint, then tuck splice into wiring harness loom. Install ring terminal to glow plug using the provided flange nut.
