6.7L Cummins Fuel Filter Housing Drain Hose Extension

6.7L Cummins Fuel Filter Housing/Fuel-Water Separator Drain Hose Extension

The fuel filter housing drain hose on the 6.7L Cummins Turbodiesel is positioned on the driver side of the engine block next to the oil pan flange where there is minimal space to fit a drain pan or container beneath the hose. The fitting on this simple extension piece can be inserted into the drain hose and the other end placed in a suitable container to collect the drained fuel.

FEATURES

• Assembled in USA with American made materials

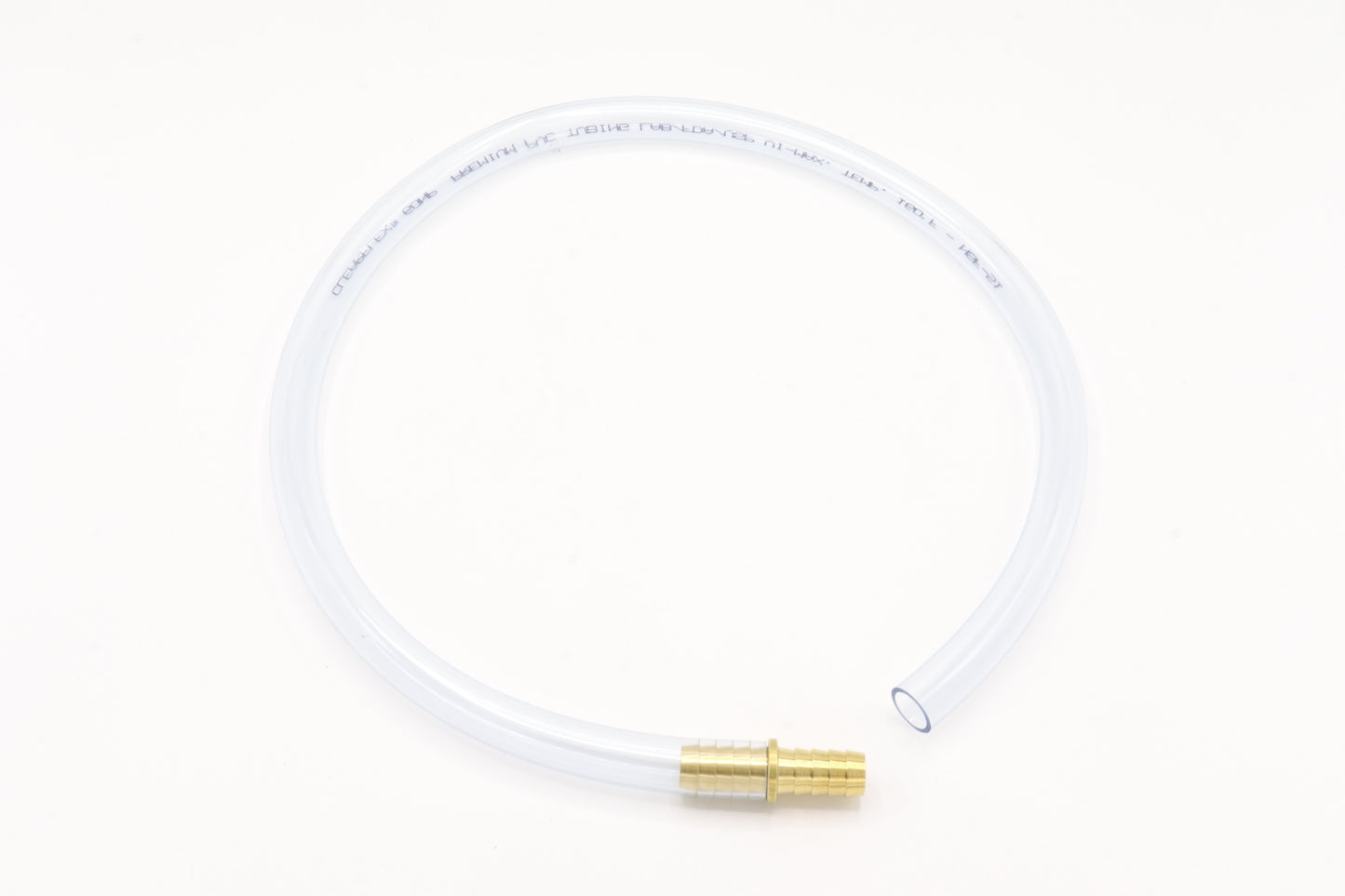

• 30 inch flexible tubing

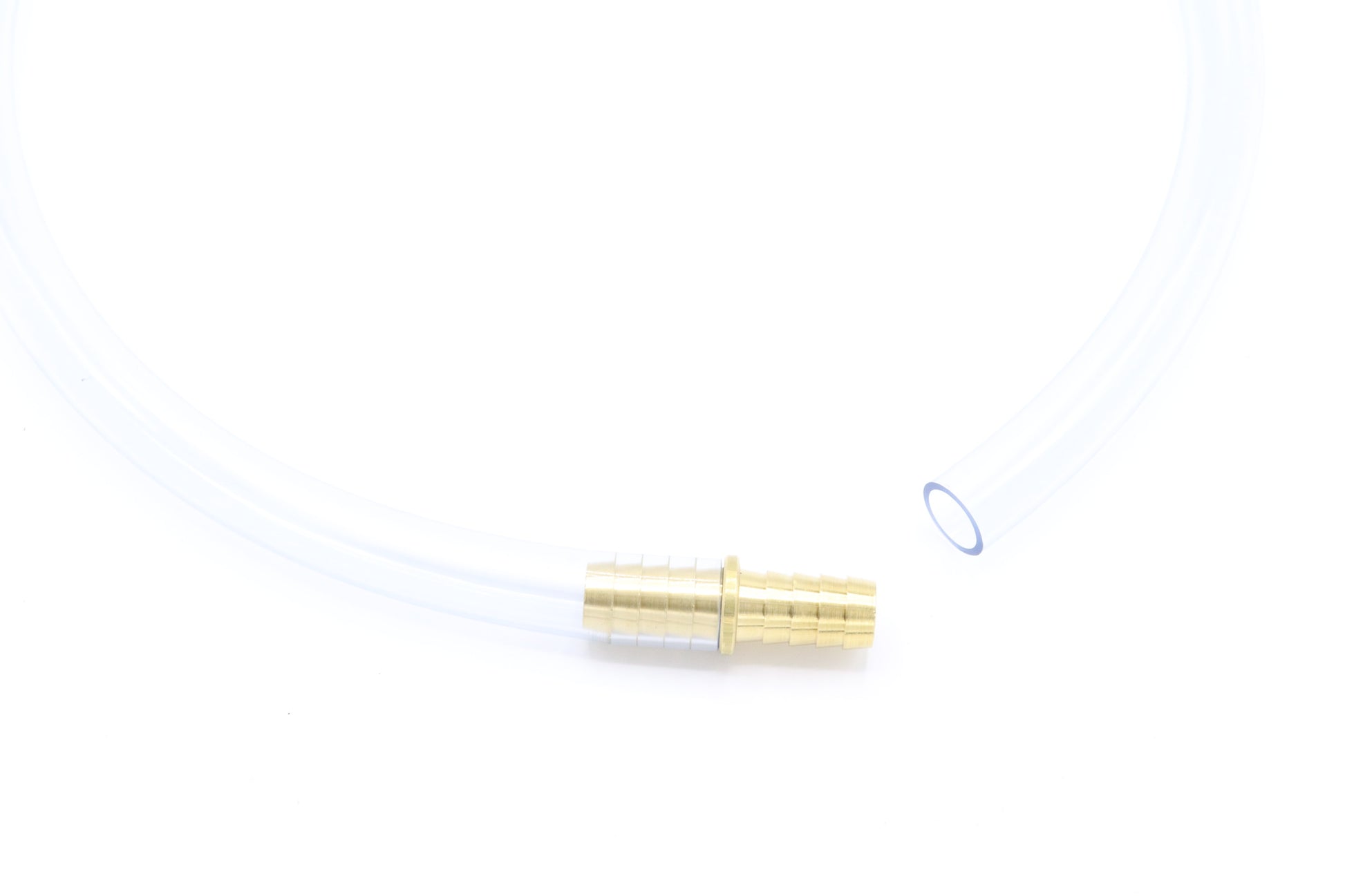

• Brass hose fitting

COMPATIBILITY

2007.5 - 2010 Dodge Ram 2500, 3500, 4500, 5500 - 6.7 liter Cummins Turbodiesel
2011 - 2024 Ram Trucks Ram 2500, 3500, 4500, 5500 - 6.7 liter Cummins Turbodiesel

INSTRUCTIONS

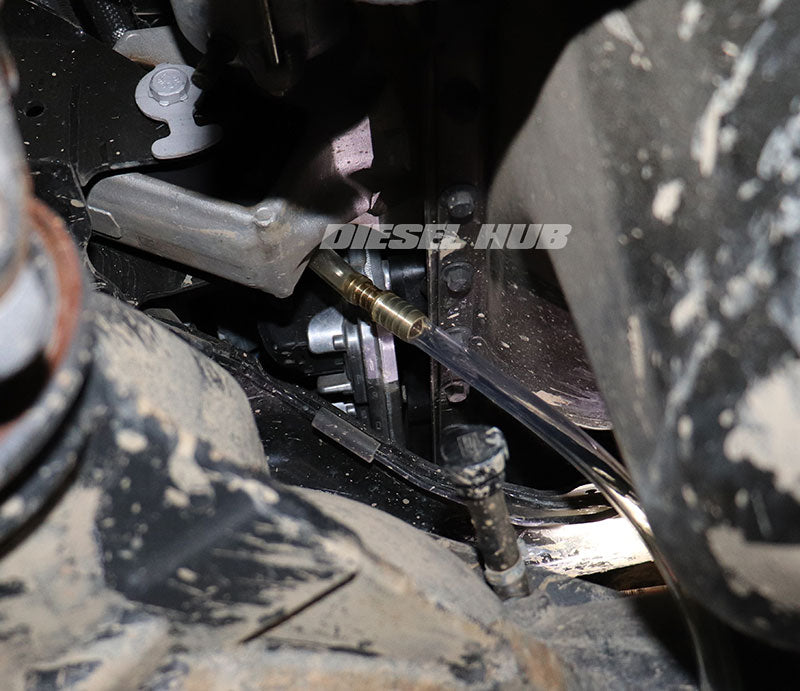

Do not fully insert brass barbed fitting into filter housing drain hose; only insert fitting as much as necessary to secure in place. If fitting is inserted too far, it may be difficult or impossible to remove from drain hose. Recommend inserting just past the first barb only, then testing the fitment. See third image for example.
