6.0L Power Stroke Fuel Pressure Test Fitting

Fuel Pressure Test Fitting for 6.0 Power Stroke Engines

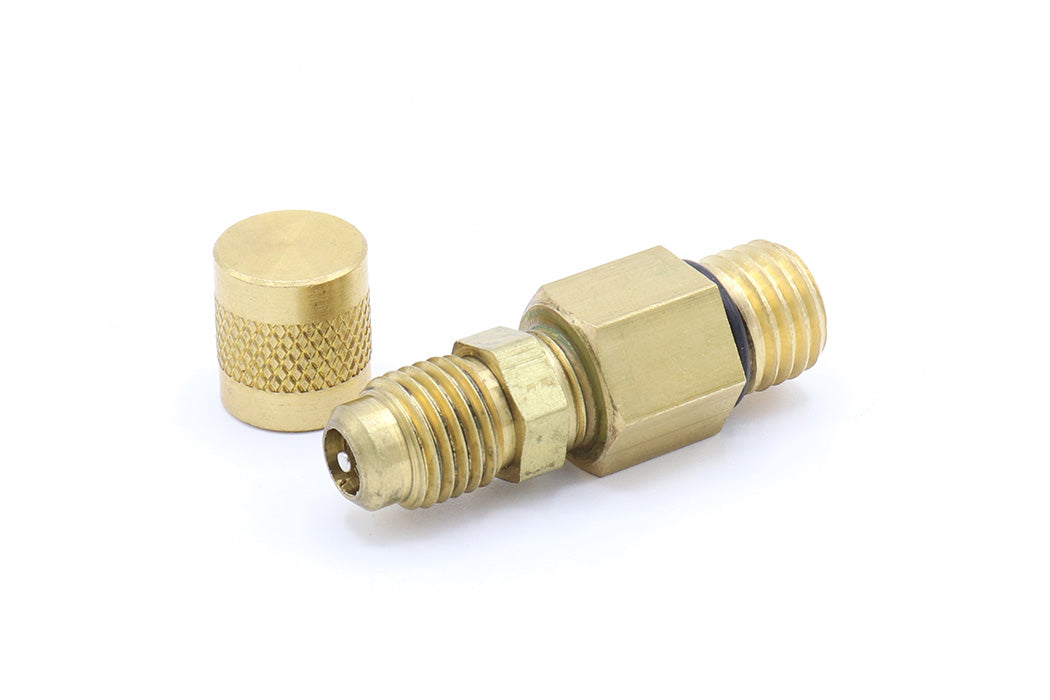

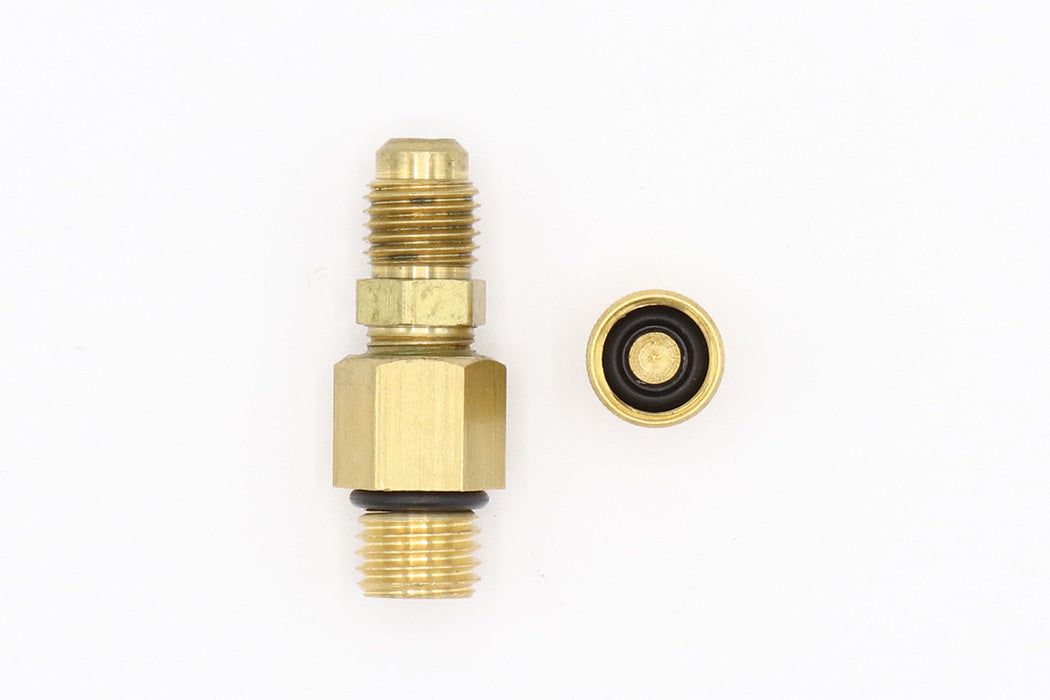

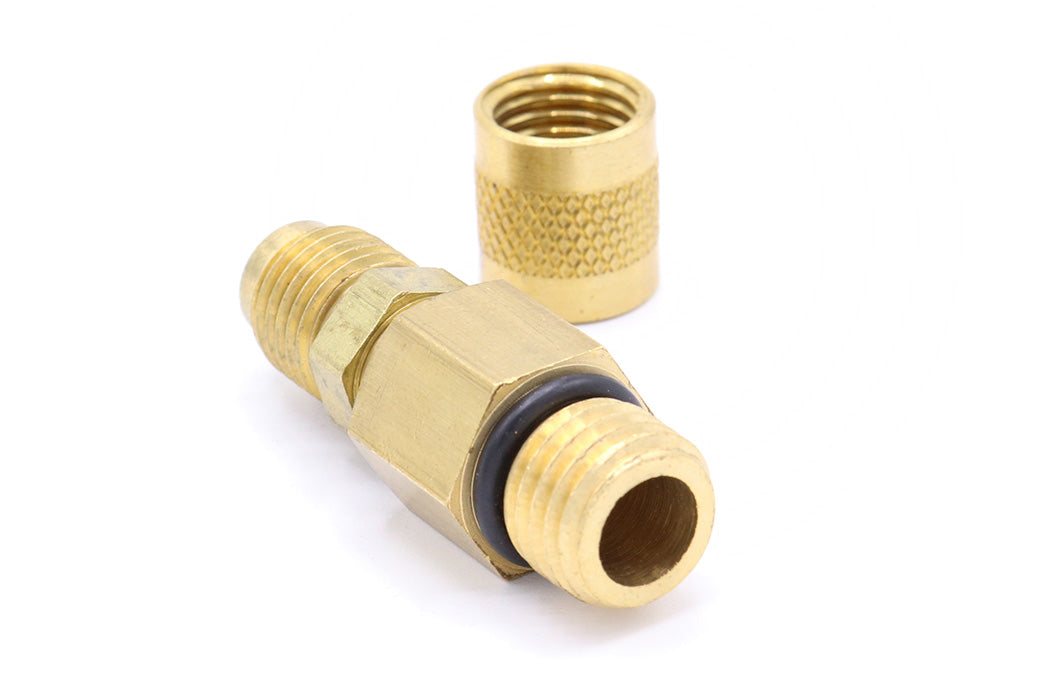

Installs at the engine mounted fuel filter housing to allow fuel pressure test equipment to be installed. Fitting is a common Shrader type, 1/4 inch flare that connects to a wide range of test gauges. This test fitting can be temporarily or permanently installed.

Fitting comes assembled to the appropriate adapter and ready to install. 1/4 inch flare is the modern standard for fuel system test equipment and thus this fitting is compatible with most common gauge setups.

FEATURES

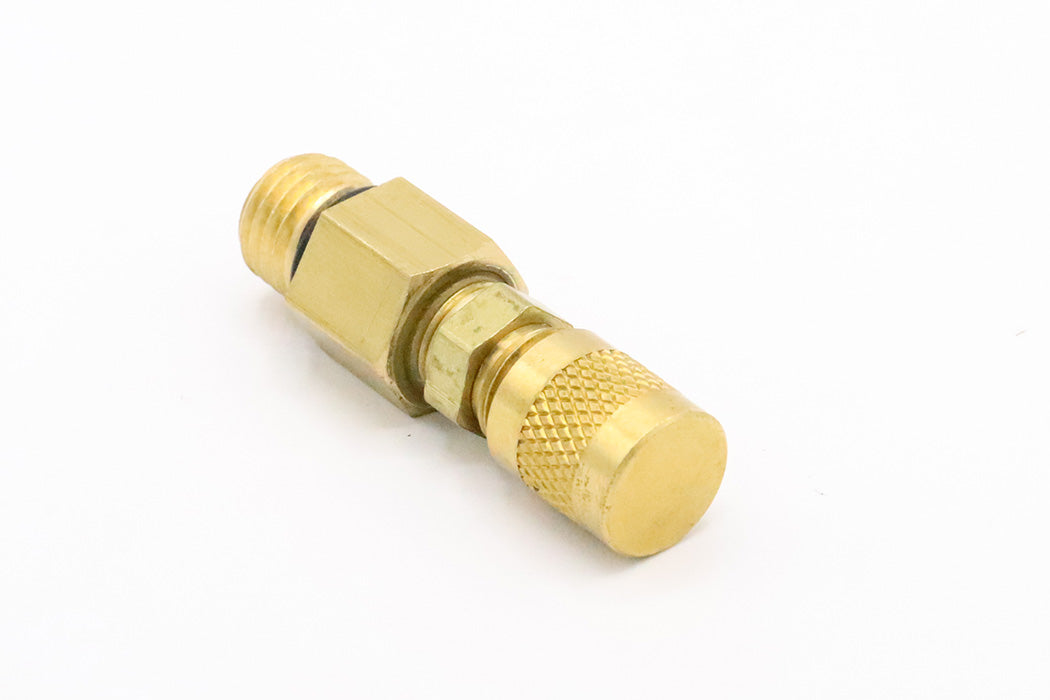

• Includes protective screw-on cap to protect fitting from dust & debris

• Test fitting Made in USA

COMPATIBILITY

All 6.0L Power Stroke engines

2003 - 2007 Ford F-250, F-350, F-450, F-550 Super Duty - 6.0 liter Power Stroke V8 engine
2003 - 2005 Ford Excursion - 6.0 liter Power Stroke V8 engine
2004 - 2010 Ford Econoline E-350, E-450 - 6.0 liter Power Stroke V8 engine
2003 - 2008 Ford F-650, F-750 medium duty - 6.0 liter Power Stroke V8 engine

INSTALLATION NOTES

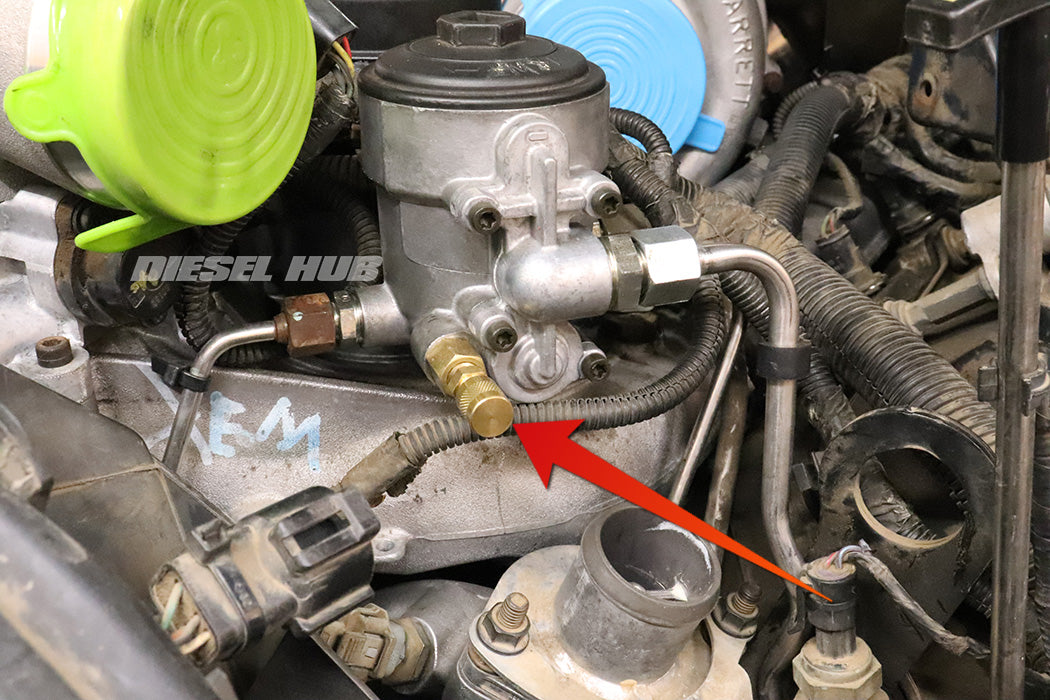

Remove the plug from the lower portion of the fuel bowl. Lightly coat the o-ring on the test fitting adapter with clean motor oil then install snug; do not overtighten. Disconnecting the fan clutch connector at the shroud and temporarily repositioning it improves access to the bottom of the filter housing.
