7.3 IDI Viton Sleeve Fuel Line Seal Kit

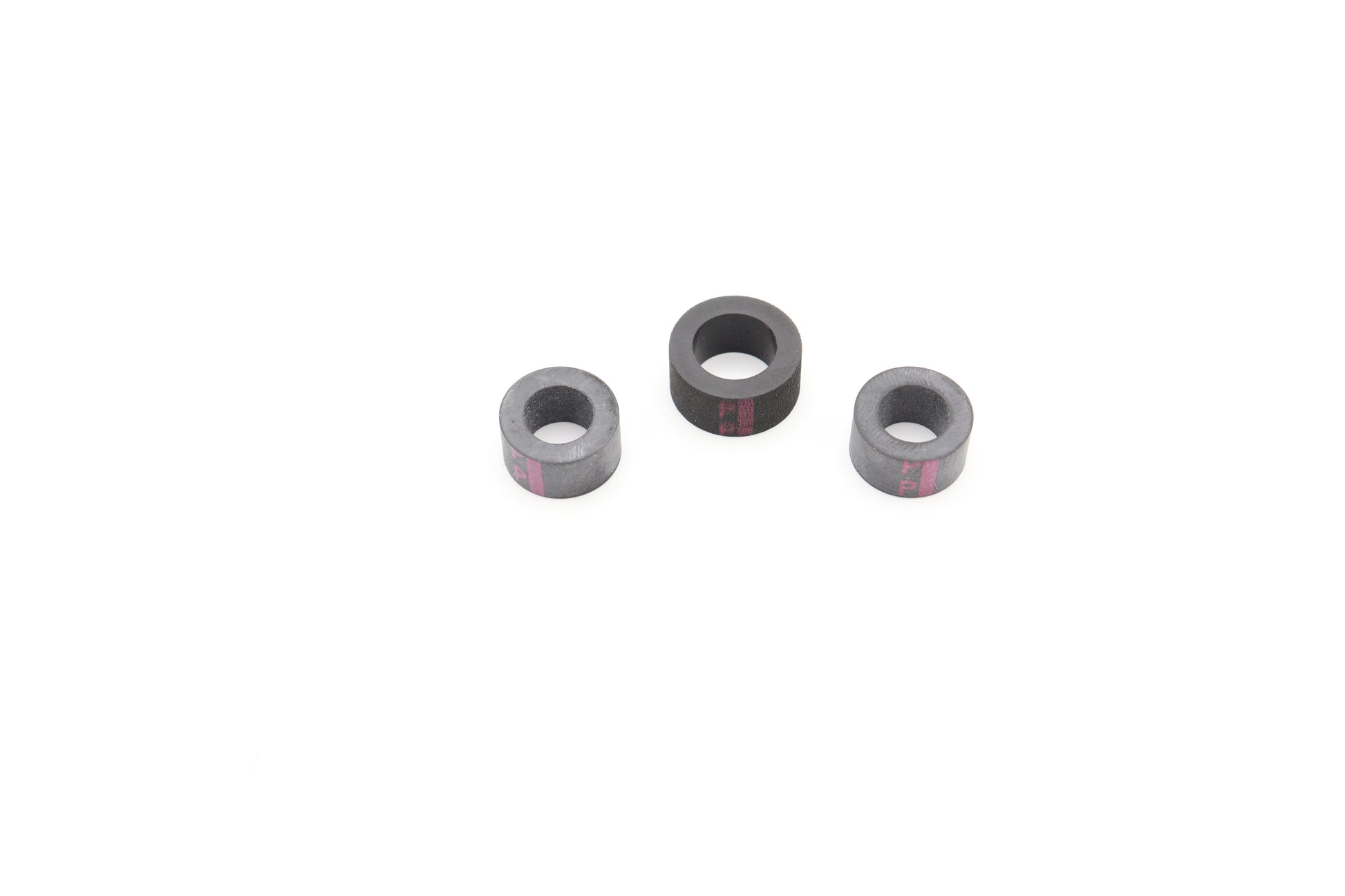

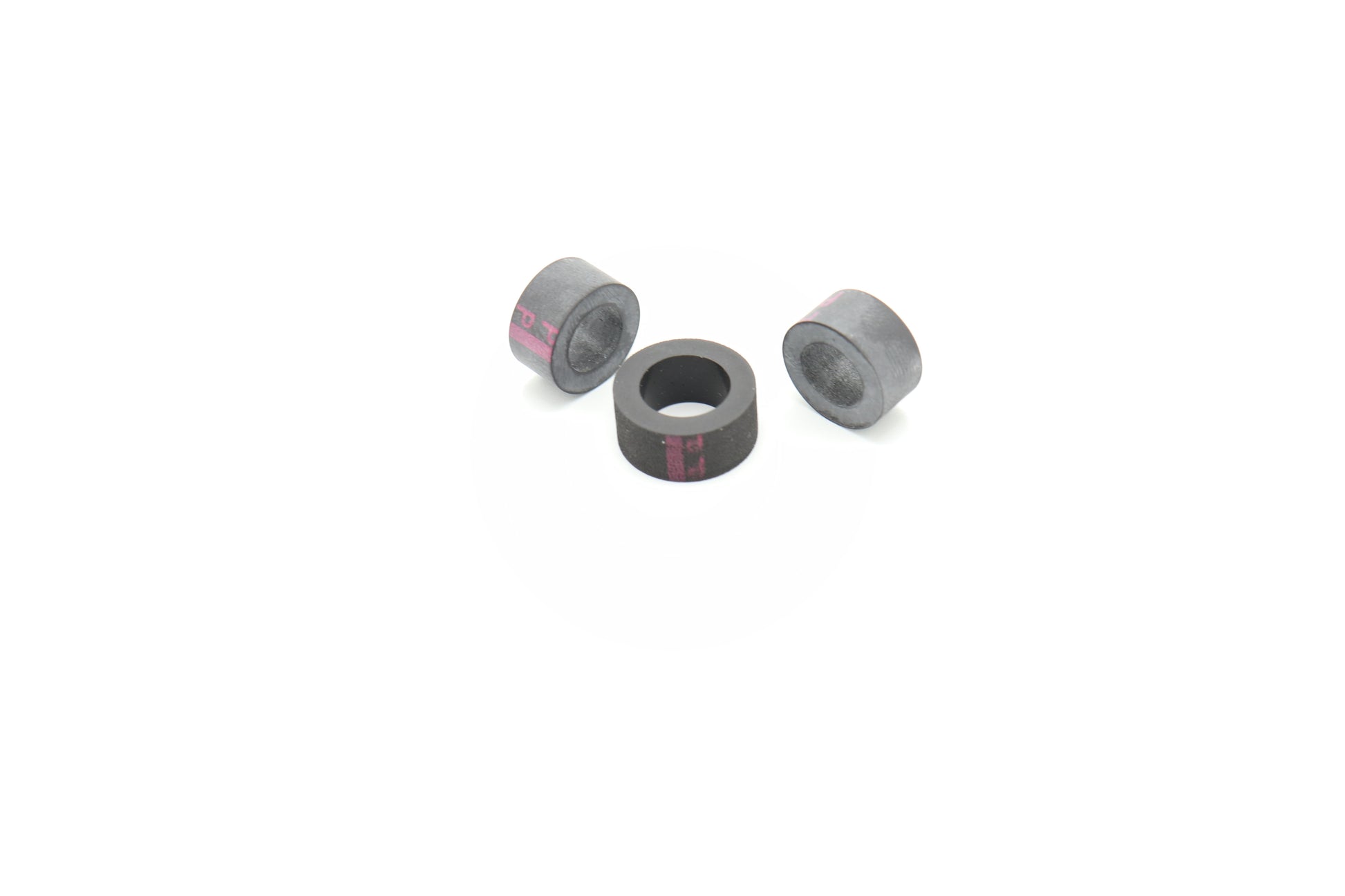

Seals the metal fuel inlet and outlet lines at the fuel filter base and at the inlet of the injection pump. Kit includes (1) x 3/8 inch sleeve and (2) x 5/16 inch sleeves. From the factory, IDI diesels utilized Buna-N sleeves at these fuel line connections. These Viton sleeves are significantly more chemical resistant and resilient than the factory seals.

(2) x 5/16 inch sleeves seal both sides of the rigid fuel line connecting the fuel filter base to the injection pump (fuel filter outlet to injection pump inlet).

(1) x 3/8 inch sleeve seals the rigid fuel line connecting the fuel filter base to the fuel pump. Note that there is no sleeve at the fuel pump connection, only on the filter side of this line.

Highly recommend replacing as a complete set if a fuel leak is detected or the fuel pump is replaced.

FEATURES

• Genuine Parker sleeves
• Set includes (2) 5/16 inch sleeves and (1) 3/8 inch sleeve
• Viton fluoroelastomer sleeves are an upgrade to the factory Buna-N seals; more resistant to biodiesel and renewable diesel fuels
• Made in USA

COMPATIBILITY

1983 - 1987 Ford F-250, F-350 - 6.9 liter IDI V8 engine
1983 - 1987 Ford E-250, E-350 - 6.9 liter IDI V8 engine
1988 - 1994 Ford F-250, F-350, F-Super Duty - 7.3 liter IDI V8 engine
1988 - 1993 Ford E-250 - 7.3 liter IDI V8 engine
1988 - 1994 Ford E-350 - 7.3 liter IDI V8 engine

Not applicable to 7.3L Power Stroke engines; see DP-1610K instead

INSTALLATION NOTES

Lightly coat with clean motor oil prior to installation. Fuel connections should be clean and free of debris and/or old remnants before installing new seals.
