Compression sleeves are used to seal the rigid fuel lines at various connections on the 7.3 liter Power Stroke engine. Viton is a more resilient material than the original rubber seals and offers superior chemical resistance for a longer service life. 1994 to 1997 engines use a pair of compression sleeves to seal the rigid fuel lines at the rear of each cylinder head. 1998 to 2003 engines use a total of (6) compression sleeves to seal the inlet/outlet lines at the fuel bowl in addition to the cylinder head fittings.
The service kit for 1994 to 1997 engines (1609K) includes (2) x 1/4 inch compression sleeves.

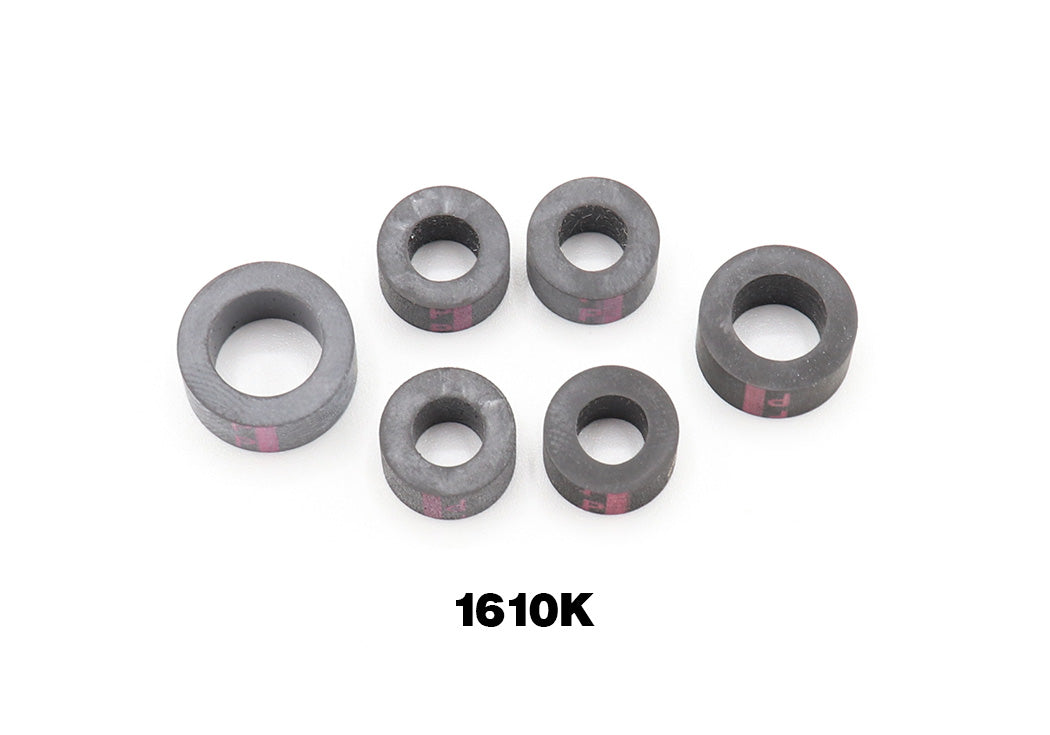

The service kit for 1998 to 2003 engines (1610K) includes:
• (4) x 1/4 inch sleeves - seals the driver and passenger side fuel lines at the fuel bowl and cylinder head connections
• (1) x 5/16 inch sleeve - seals the fuel return line to the fuel bowl at the pressure regulator
• (1) x 3/8 inch sleeve - seals the fuel supply (inlet) line to the fuel bowl.
Please select the appropriate sleeve set from the drop-down menu.
FEATURES
• Genuine OEM Parker sleeves
• Made in USA
APPLICATIONS
1994 - 2003 Ford F-250, F-350, F-450, F-550 Super Duty (7.3L Power Stroke)
2000 - 2003 Ford Excursion (7.3L Power Stroke)
2000 - 2003 Ford F-650, F-750 (7.3L Power Stroke)
1995 - 2003 Econoline E-350, E-450, E-550 (7.3L Power Stroke)
INSTALLATION NOTES
Lightly coat with clean motor oil prior to installation. Fuel connections should be clean and free of debris and/or old remnants before installing new seals.
ADDITIONAL PRODUCT DETAILS
| Manufacturer: | Parker |
| Part Number(s): | DP-1609K, 1609K, DP-1610K, 1610K |
| Origin: | USA |
| Warranty: | 90 day, unlimited mileage |
| Shipping Weight: | 3 oz |
