12v Cummins KDP Tab & Installation Kit
12v Cummins KDP Tab & Installation Kit
12v Cummins KDP Tab & Installation Kit
  • Load image into Gallery viewer, 12v Cummins KDP Tab & Installation Kit
  • Load image into Gallery viewer, 12v Cummins KDP Tab & Installation Kit
  • Load image into Gallery viewer, 12v Cummins KDP Tab & Installation Kit

12v Cummins KDP Tab & Installation Kit

Regular price
$37.95
Sale price
$37.95
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

KDP Tab & Install Kit for 1994 - 1998 5.9L Cummins Turbodiesel

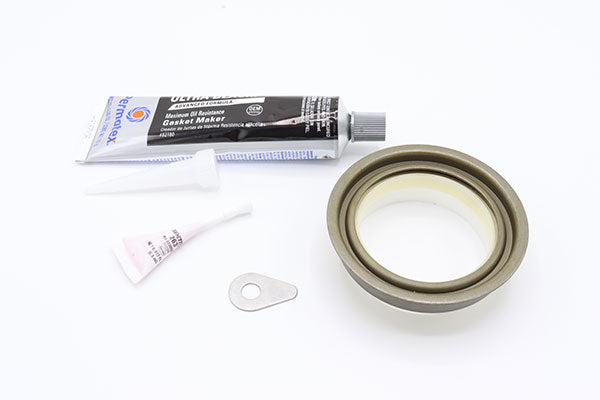

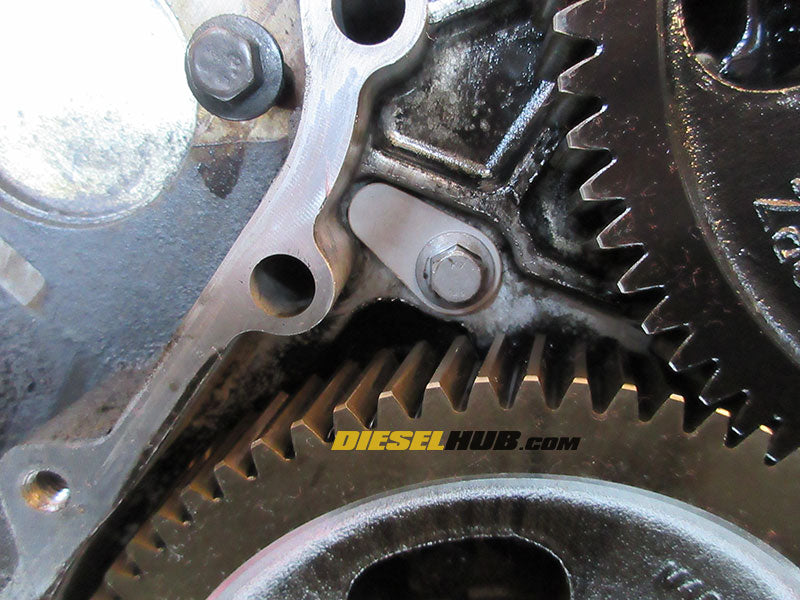

Permanently resolve your "Killer Dowel Pin" related concerns with our KDP tab installation kit. Stamped from high grade stainless steel, the KDP tab prevents the front cover alignment dowel pin from vibrating loose and dancing down the gear train assembly. If and when the dowel pin becomes sandwiched between the timing gears, severe and often catastrophic damage occurs. This kit is available in two variations - one using RTV silicon to seal the front cover (no gasket required) and the other including a new front cover gasket. Both kits include:

  • Stainless steel KDP tab

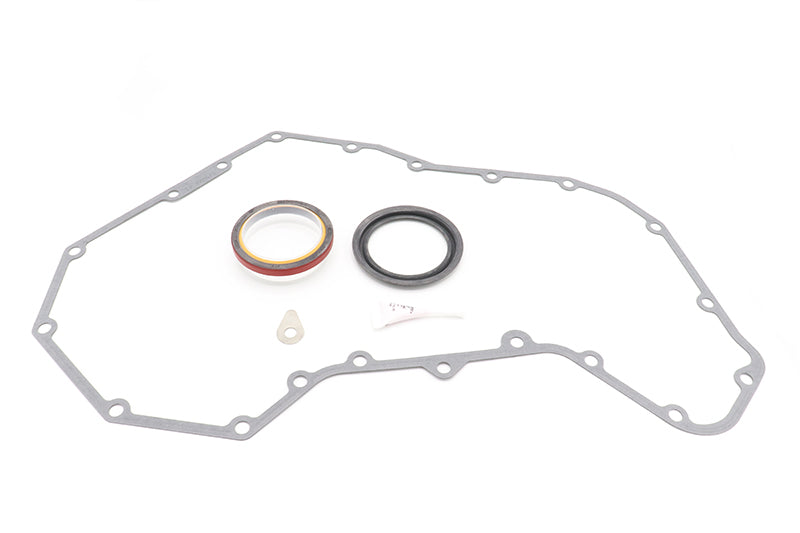

  • RTV silicon or new front cover gasket (depending on your selection)
  • Loctite threadlocker
  • Front cover crankshaft seal
  • Full color installation manual

FEATURES

• Stainless steel KDP tab
• Installs with basic hand tools
• Includes all required parts and accessories
• Full color installation manual walks you through the install, step-by-step
• Permanently prevents KDP failures for the life of your engine

APPLICATIONS

1994 - 1998 Dodge Ram 2500/3500 equipped with 12 valve 5.9L Cummins Turbodiesel

INSTALLATION NOTES

Instructions included. Basic hand tools required. Crankshaft seal includes installation ring. To preview installation requirements, please see: 12v Cummins KDP Tab Installation

If your dowel pin is missing, please see: Cummins 3900257, dowel pin

ADDITIONAL PRODUCT DETAILS

Manufacturer: Various
Part Number(s): RT-300101, RT-300101G
Origin: USA (foreign & domestic materials)
Shipping Weight: 15 oz, 2 lbs
